Overview
| Type: | Hybrid Camper – Poptop |
| Sleeps: | Sleeps: 2 + 2 kids roof section |
| Overall Length: | 5.95m (Aust./NZ) 19’6″ (USA) |
| Overall Width: | 2.180m (Aust./NZ) 7’02″ (USA) |
| Interior Length: | 3.490m (Aust./NZ) 11’05″ (USA) |
| Interior Width: | 1.89m (Aust./NZ) 6’2″ (USA) |
| Travel Height: | 2.250m (Aust./NZ) 7’04″ (USA) |
| Tare / Dry weight/UVW: | 2000 kg (Aust./NZ) 4410 lbs (USA) |
| Suspension: | Air bag – Independent swing-arm |
| Construction: | Composite fibreglass body construction |
| Roof Lift: | Full electric roof lift |
| Mattress: | Luxury Pocket spring pillow top mattress |
| Cooking: | Interior and exterior kitchen |
| Ensuite: | Compost toilet – shower |
| Solar: | 4 * 330W panels – 1320W total |
Specifications
Appliances
| Air Conditioner: | Split type AC in front tool box and front storage area |
| Fridge internal: | Vitrifrigo -12V Compressor Refrigerator 110L (AUS) 3.8 cu ft (US) |
| Fridge external: | 95 litre – fridge and freezer (Aust.) (USA) 25 gal. – Option |
| Washing machine: | Washing machine (option to be installed in underside storage area) |
| Television: | 24″ HD smart LED TV (option on ensuite wall) |
| Hot water heater: | Diesel hot water heater |
| Hot air heater: | Diesel hot air heater |
| Induction cooker: | Single burner induction cooktop (portable) |

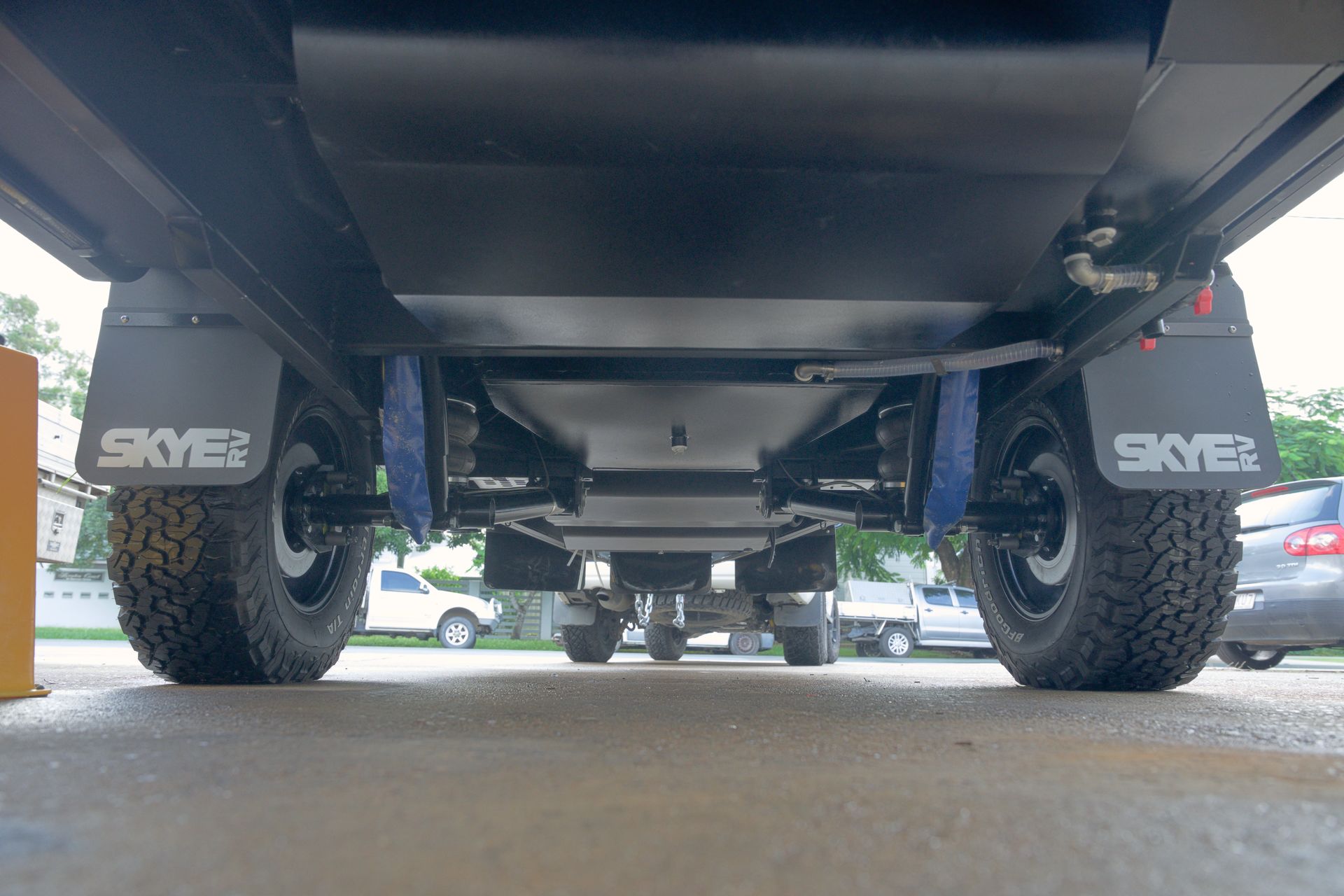

Chassis
| Chassis Protection: | Chassis is hot dipped gal then painted to provide ultimate protection. |
| Chassis Design: | Proven Chassis design – 150*50 Box section Main rails |
| Coupling: | Cruisemaster DO35 coupling – 3500kg rating (Aust.) 7700 lbs (USA) |
| Suspension: | Airbag adjustable Independent trailing arm suspension |
| Brakes: | 12″ Electric Hydraulic Disc Brakes Deemax components |
| Rims Tires: | 17″ Black “High load” Alloy Rims – 285 / 70 / R17″ A/T tire |
| Rims Tires: Spare | 17″ Black “High load” Alloy Spare Rim – 285 / 70 / R17″ A/T tire |
| Jockey Wheel: | 12V Electric adjustable jockey wheel |
| Stabilizer legs: | 750mm drop down stabilizer legs |
| Recovery points: | 2x Rear recovery points |
Dimensions
| Body length: | 4.16m (Aust./NZ) 13’8″ (USA) |
| Overall Length: (Coupler to spare tires) | 5.95m (Aust./NZ) 19’6″ (USA) |
| Body External Width: | 1.95m (Aust./NZ) 6’5″ (USA) |
| External Height (Roof Down): | 2.30m (Aust./NZ) 7’8″ (USA) |
| External Height (Roof Extended): | 3.06m (Aust./NZ) 10’0″ (USA) |
| Internal Height (Roof Down) | 1.34m (Aust./NZ) 4’4″ (USA) |
| Internal Height (Roof Up) | 2.10m (Aust./NZ) 6’10” (USA) |
| Internal width: | 1.89m (Aust./NZ) 6’2″ (USA) |
Weights
| Tare Weight: (Aust) Dry weight / UVW: (USA) | 2000 kg (Aust./NZ) 4410 lbs (USA) |
| ATM Weight: (Aust) GVWR: (USA) | 2950 kg (Aust./NZ) 6503 lbs (USA) |
| Axle load rating: (Aust) GAWR: (USA) | 2900 kg (Aust./NZ) 6393 lbs (USA) |
| Load rating: (Aust) Payload: (USA) | 950 kg (Aust./NZ) 2094 lbs (USA) |
Exterior
| RV body construction: | Fiberglass composite walls 30mm overall – German fiberglass skins |
| Body protection: | Fully bonded shell with bonded Aluminum edge trim |
| Flooring: | Insulated 30mm composite floor |

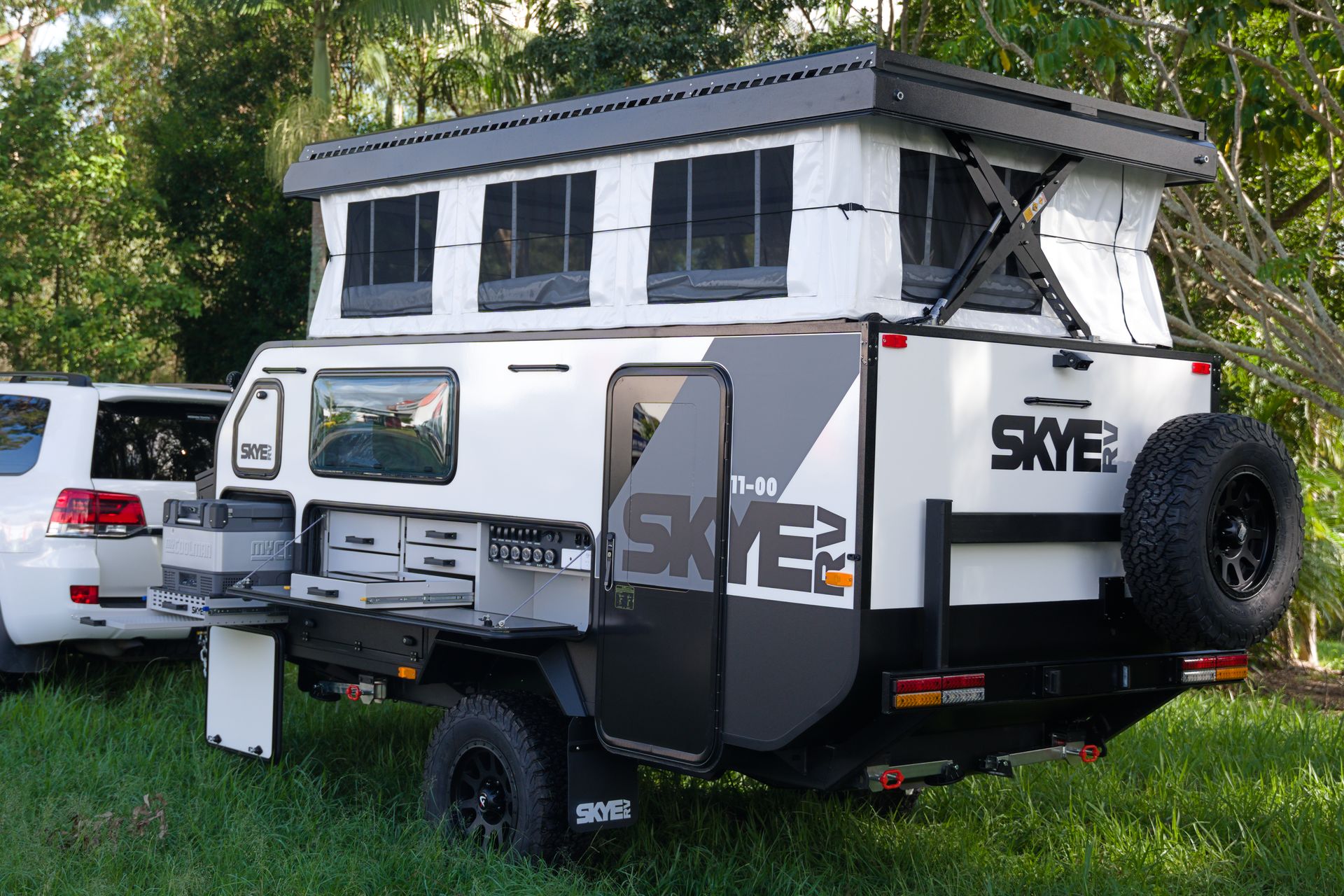

| Exterior kitchen: | Best in class exterior kitchen with induction cook top hot and cold water |
| Awning: | Aluminum cassette type wind out awning |
| Windows: | Dual glazed tinted windows |
| Entry door: | Entry door with crimsafe type security screen |
| Body protection: | Black “rubber type” protection paint to 450mm height for wall protection |
| Hatch doors: | Double rubber seal quality hatch doors |
| Roof lift: | 4* electric actuator roof lift |

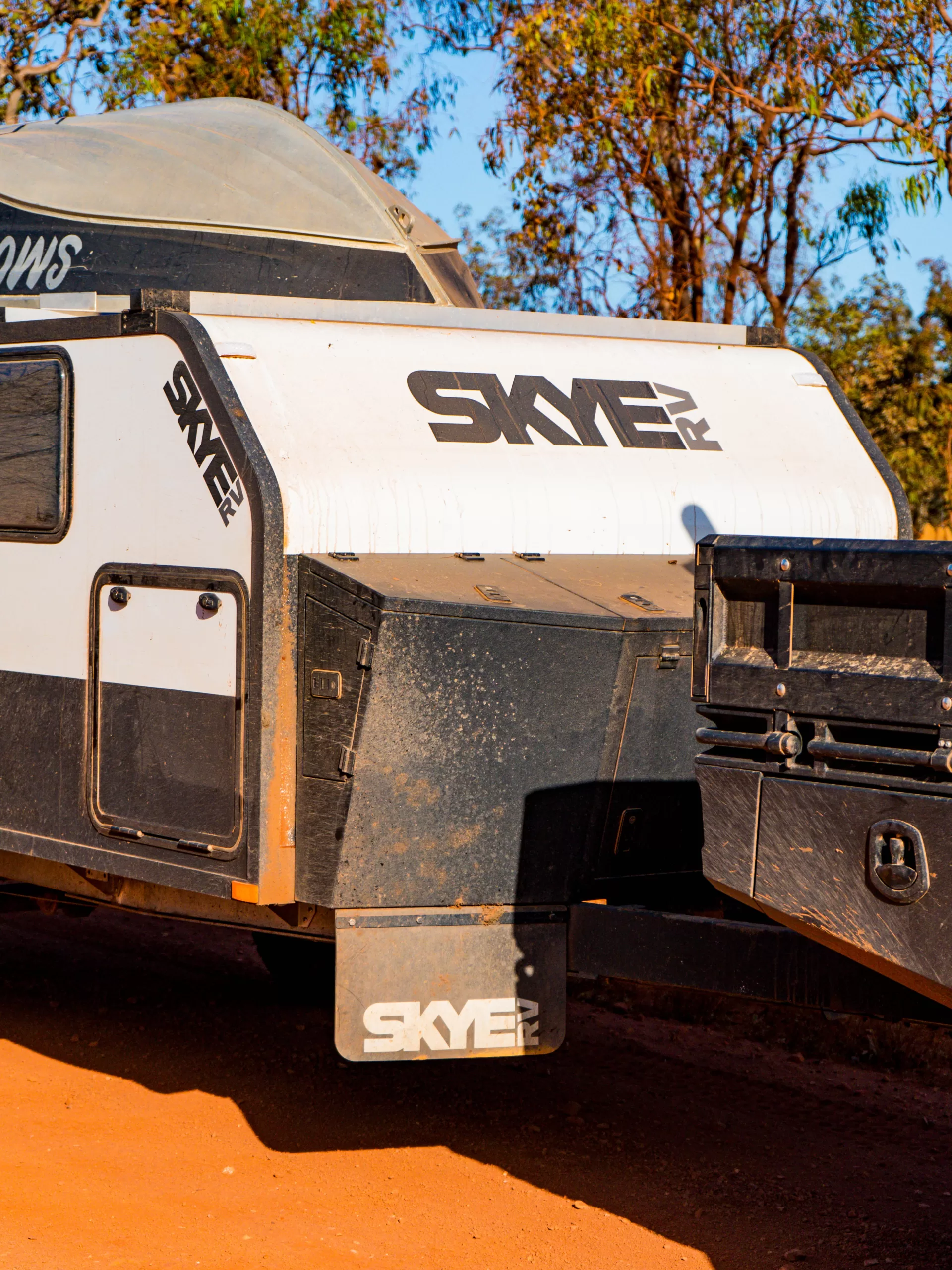

| Tool box storage areas: | Front tool box with jerry can, gas and AC |
| Jerrycan Holders: | Options/brands/spec. in review/selection |
| Entry Stairs: | Black Aluminum entry step – separate loose item |
| BBQ slide: | BBQ mount on front chassis |
| Bike carrier mount: | Options/brands/spec. in review/selection |
| Wood box option: | To be added to front of van above tool box |
| Dust prevention: | Options/brands/spec. in review/selection |
Interior
| Cabinet construction: | Aluminum cabinet construction |
| Kitchen benchtop: | Corian benchtop |
| Kitchen sink: | Square stainless sink |
| Kitchen tapware: | Black model flix-mixer tap |
| Ensuite tapware: | Black model flix-mixer tap and shower rose |
| Dinette: | Table slides out from under mattress on glides |
| Lounge seating: Materials – color | Marine grade vinyl – grey |
| Lounge seating: Configuration | Café – seats opposite |

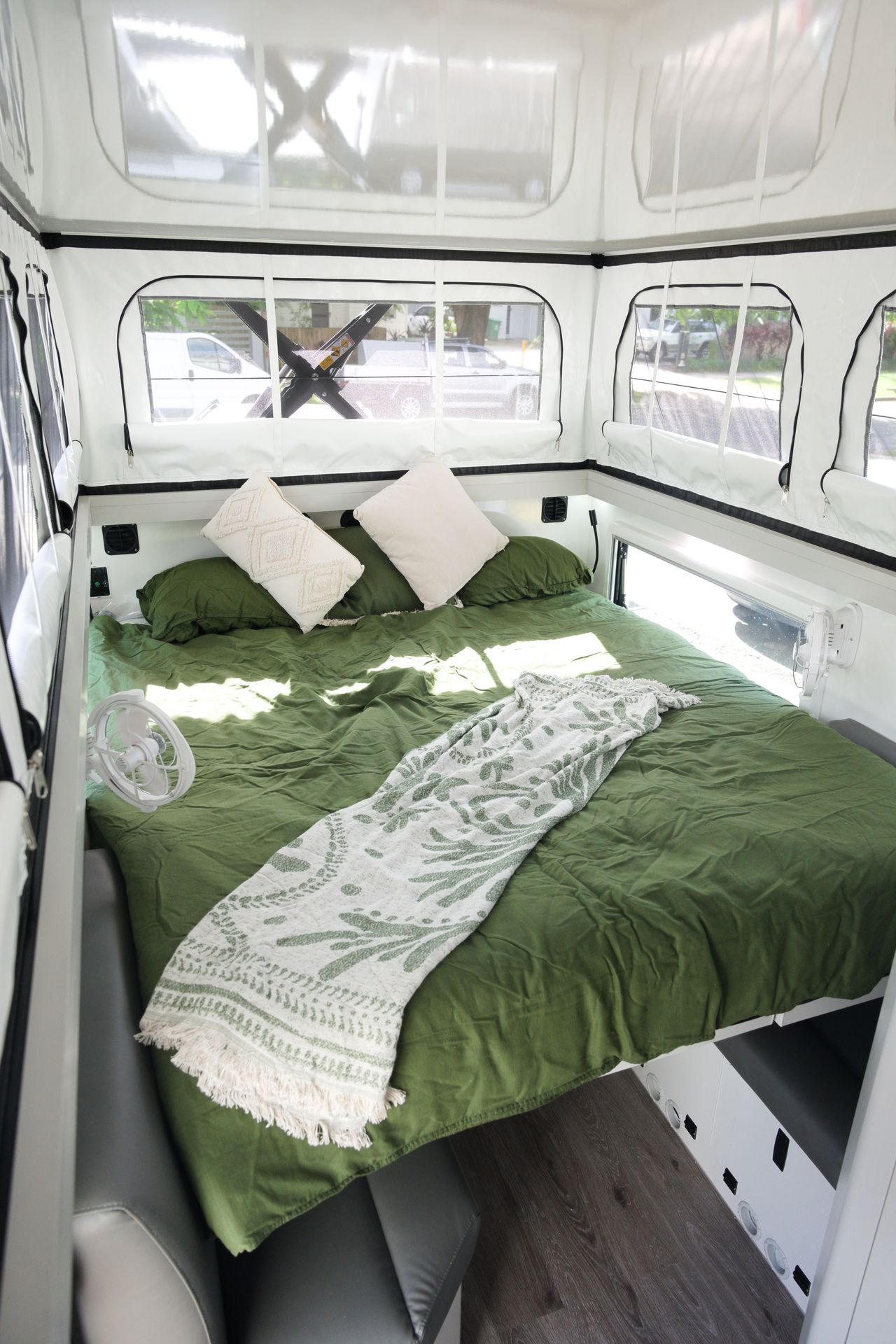

| Bed Mattress: | Pillow top pocket box spring mattress – 173×203 (AUS) 5’08″x6’08” (USA) |
| Fire saftey: | Fire extinguisher and smoke detector |
| Berth: | 2 + 2 bunk option |
Plumbing
| Potable clean water tanks: | 2*120L + 1*80L food grade plastic water tank (Aust.) 3x 31 gal (USA) |
| Water tank management: | Water tank management manifold system in front toolbox |
| Water filter system: | Dual filter water filtration system |
| Grey water tank: | 85L Aluminiumn Grey water tank (Aust.) 22 gal (USA) |
| Water tank guages: | Individual Water tank level gauges |
| Water pump: | 12V Water pump |
| Water filler point: | Water filler connection concealed in toolbox |
| Mains water: | Mains pressure connection concealed in tool box |
| Gas supply: | 2x BBQ Gas bayonet |
| Gas bottles: | 2*4kg Gas bottles (Aust.) 2x 5 lbs Gas bottles (USA.) |
| Toilet: | Compost toilet – constant fan and charcoal filter system |
| Internal Shower: | Aluminium fabricated shower area with linear grill drain |
| External shower: | 2x External showers – both sides at front (hot and cold-water supply) |
Electrical
| Mains power supply port: | 240V 15amp (Australia) 110V 30amp (USA) |
| Trailer lights connection: | 7 Pin flat trailer plug (Australia) 7 Pin round trailer plug (USA) |
| Brake actuator power: | Powered by van battery |
| RV battery charging: | Grey anderson plug for Rv battery charge – 50amp |
| External solar panel connection: | Red anderson plug rear chassis solar blanket input – 20 amp unregulated |
| Exterior lights: general | Work lights to each side of van white only |
| Exterior lights: kitchen | White and amber lights to external kitchen area |
| Sorage area lighting: | LED lighting tunnel boot storage areas – White |
| Under van lighting: | LED lighting underside of van passanger side – Amber |
| Interior lighting: | LED strip lights to main cabin – mains off for night sleeping mode |
| Reading lights: | LED reading lights to main bed |
| Camera: | Rear camera – wireless type |
| Charging ports: | USB and USB-C charging ports |
| Power outlets: | 240V Power outlets (Australia) 110V Power outlets (USA) |
| Fans: | 2 × Fans |
| Solar: | 4*330W solar panels – 1320W total solar – glass type panels |
| Batteries: | 2x VICTRON – LiFePO4 Battery 12,8V/330Ah Smart |
| Battery management: | VICTRON – GXTOUCH 50 |
| Inverter: | VICTRON – MultiPlus-Il 12/3000/120-32 230V |
| Solar charge controller: | VICTRON – SmartSolar MPPT 100/50 |
| DC-DC charger: | VICTRON – Orion-Tr Smart 12/12-30 or 12/12/50 |
| Solar mppt: | VICTRON – SMART SOLAR MPPT 75/15 |
